Dust Control System - Energy from Waste Plant

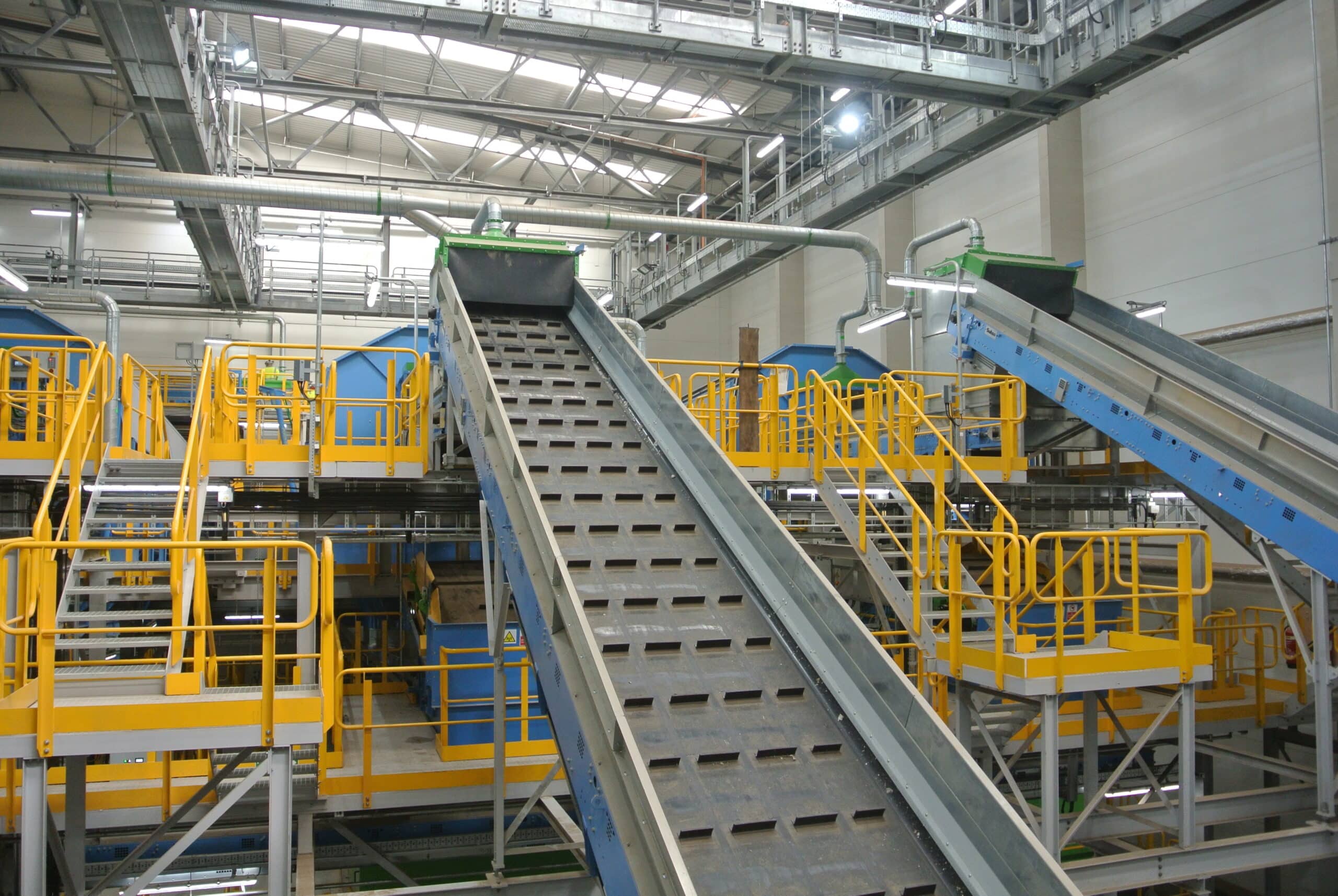

Impact Air Systems were selected to design and install numerous air system components and a centralised dust control system at an energy from waste plant in Hull, UK. The power station will be processing typical SRF/RDF material to ensure that it meets a very tight specification allowing the finished material to be fed into a gasification process where it will be burned as a fuel to produce electricity.

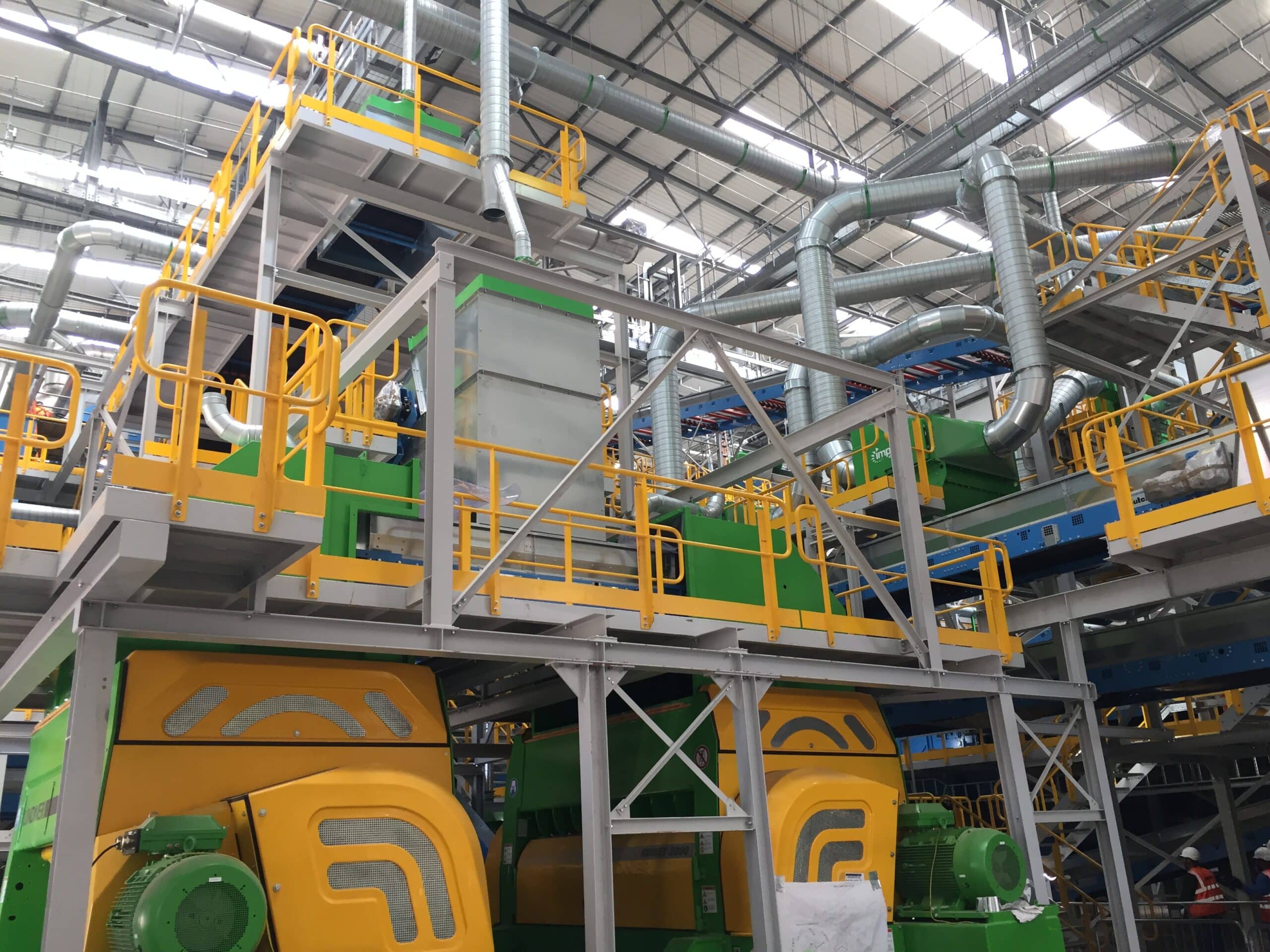

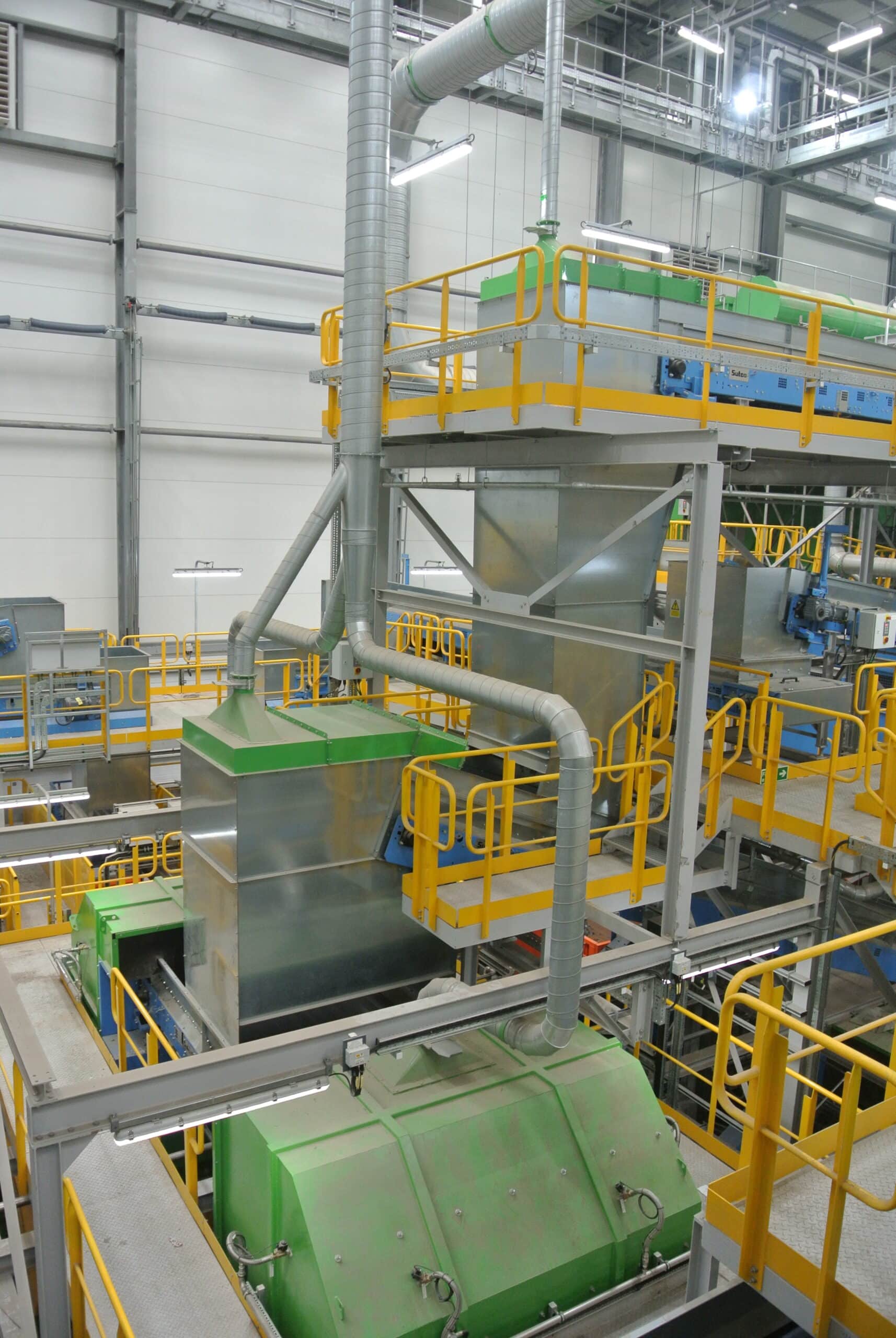

Impact’s experience and expertise were relied upon to provide fans and a ductwork circuit that would remove dust effectively and efficiently from numerous collection points throughout the plant. Included at the point of lights discharge are mechanical pre-separators which work to prevent any oversized items such as plastic bags or fibre from entering the fan circuit, dust system or filter.

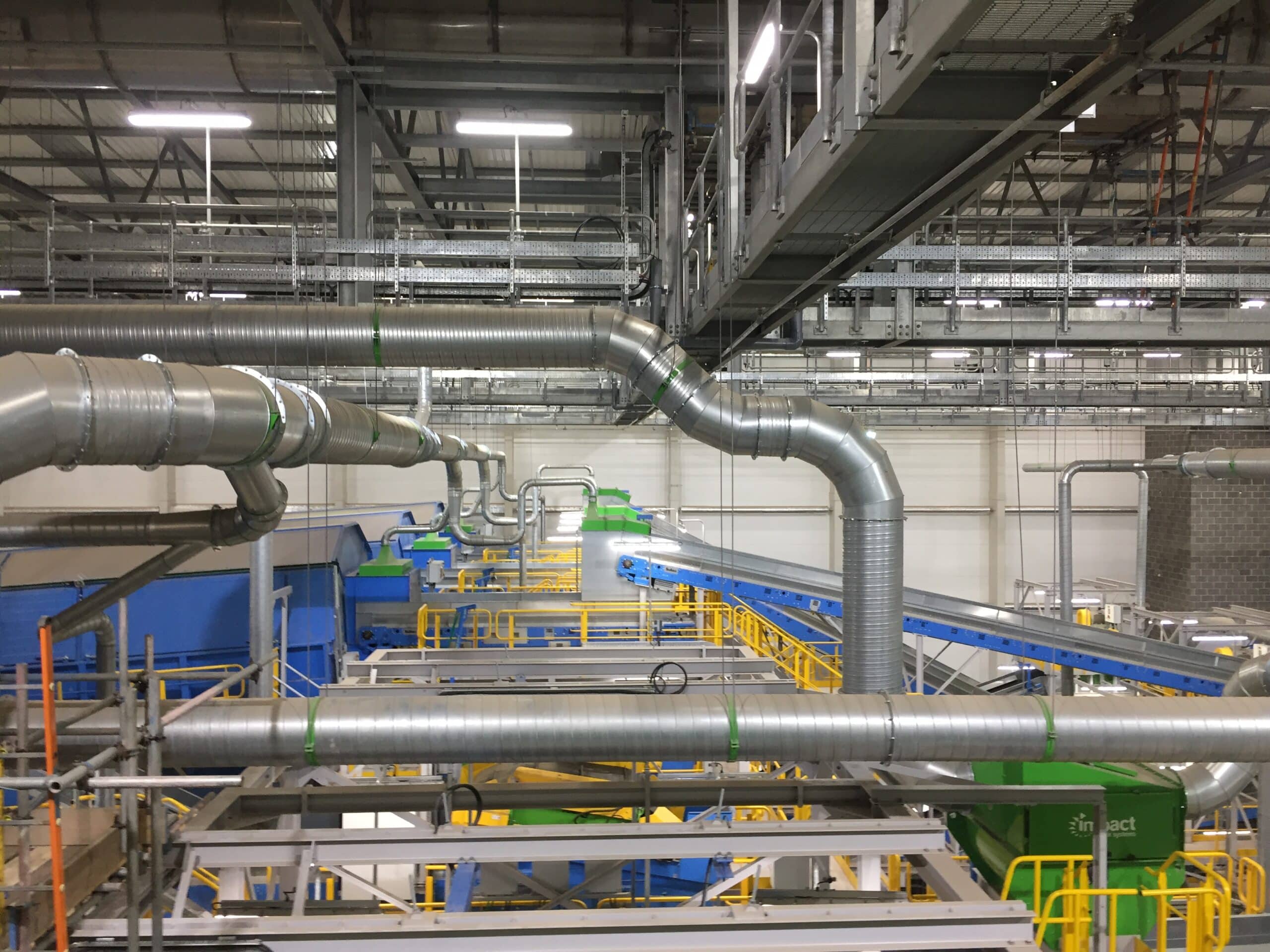

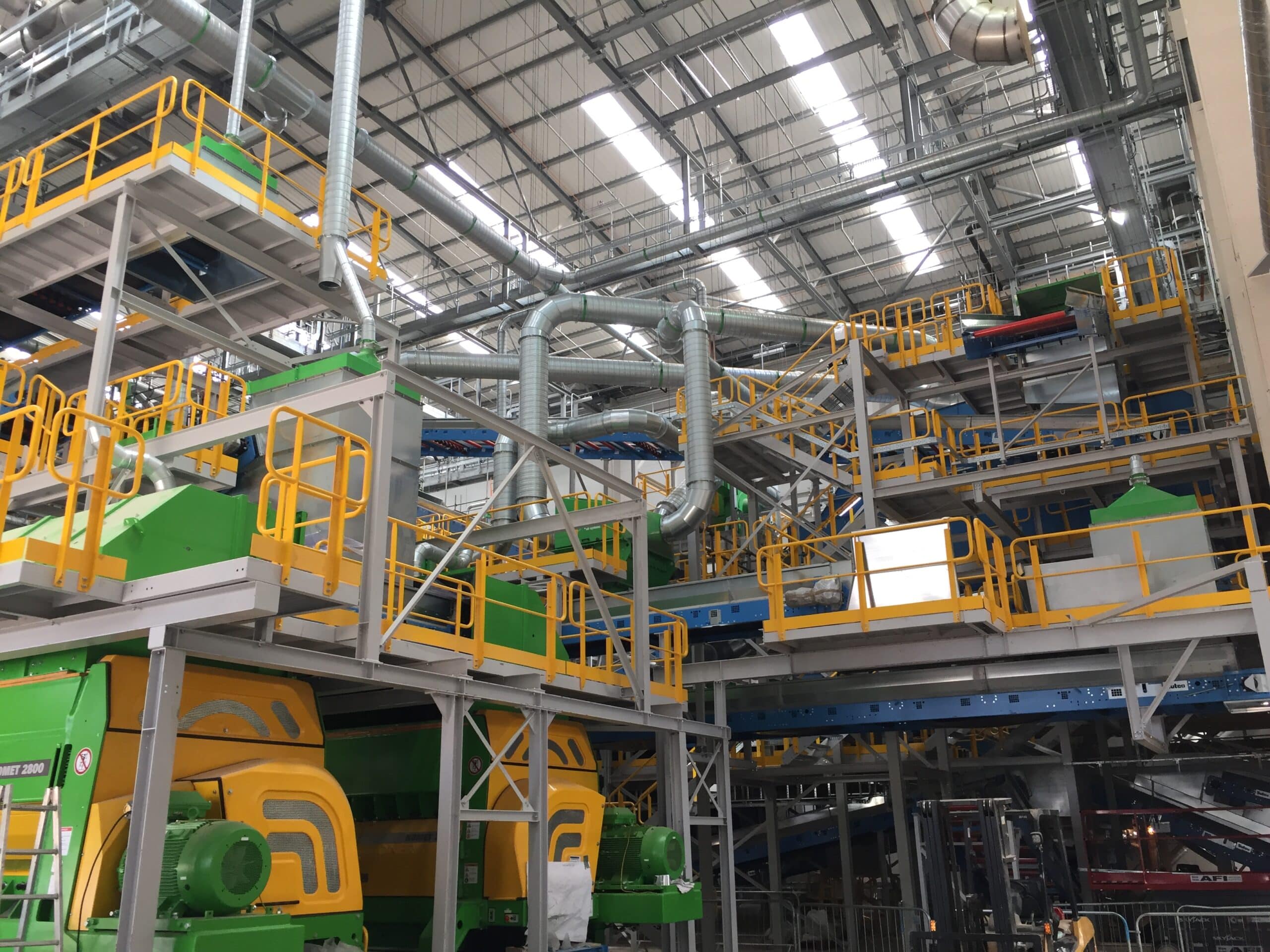

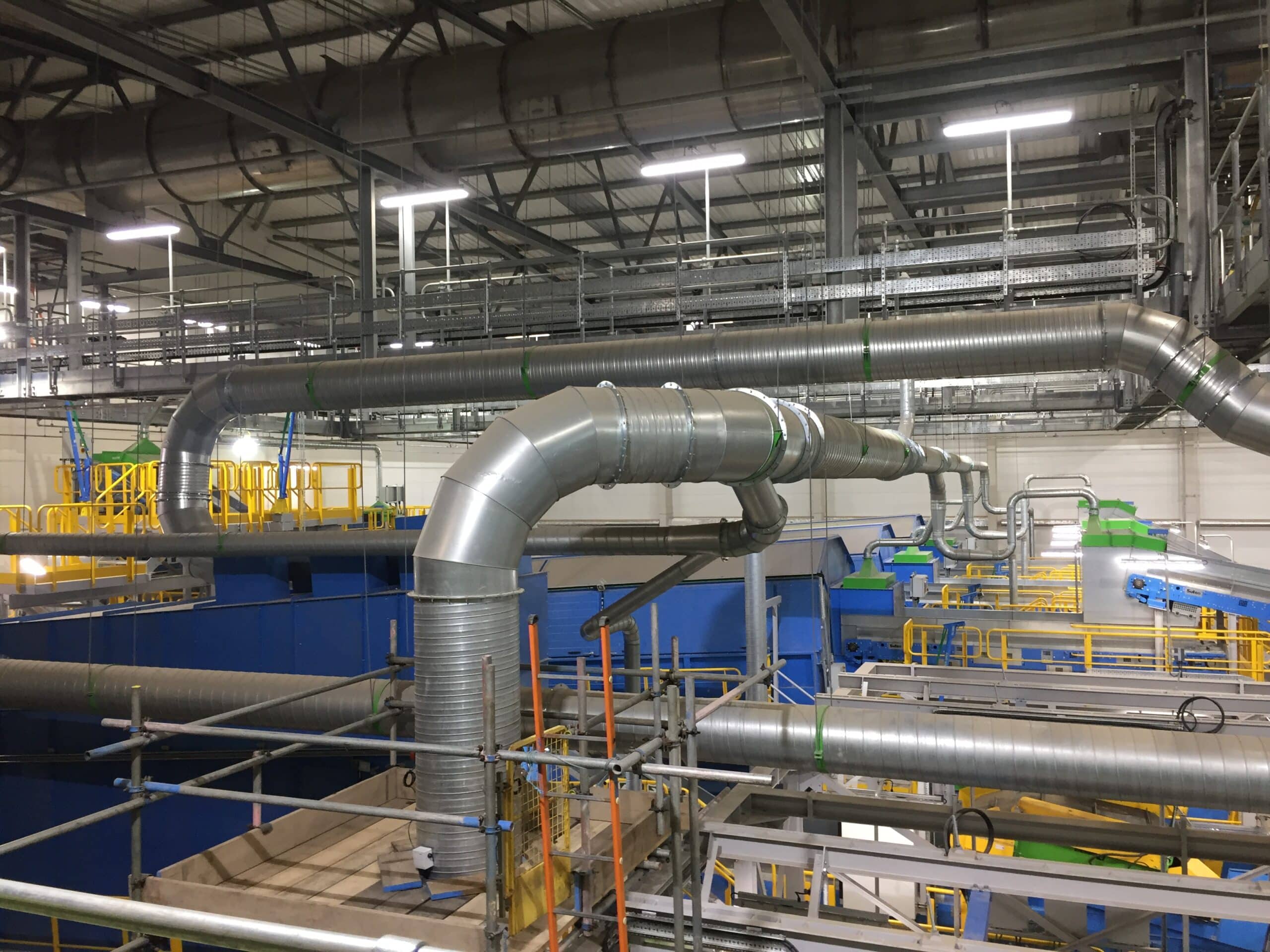

The central dust extraction system connects a total of 39 collection points using galvanised mild steel spiral wound ductwork.

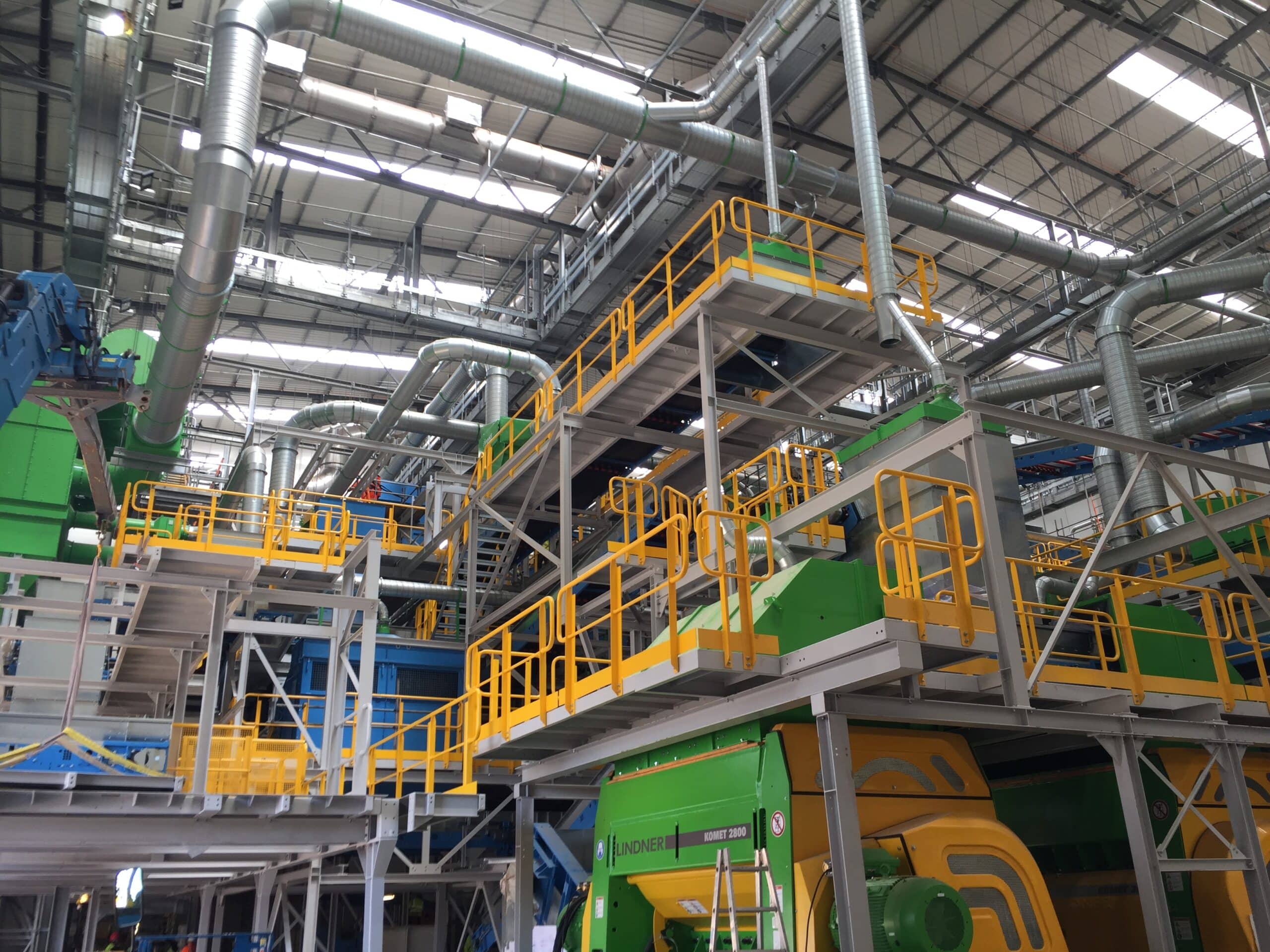

Dust Control at EfW Plant

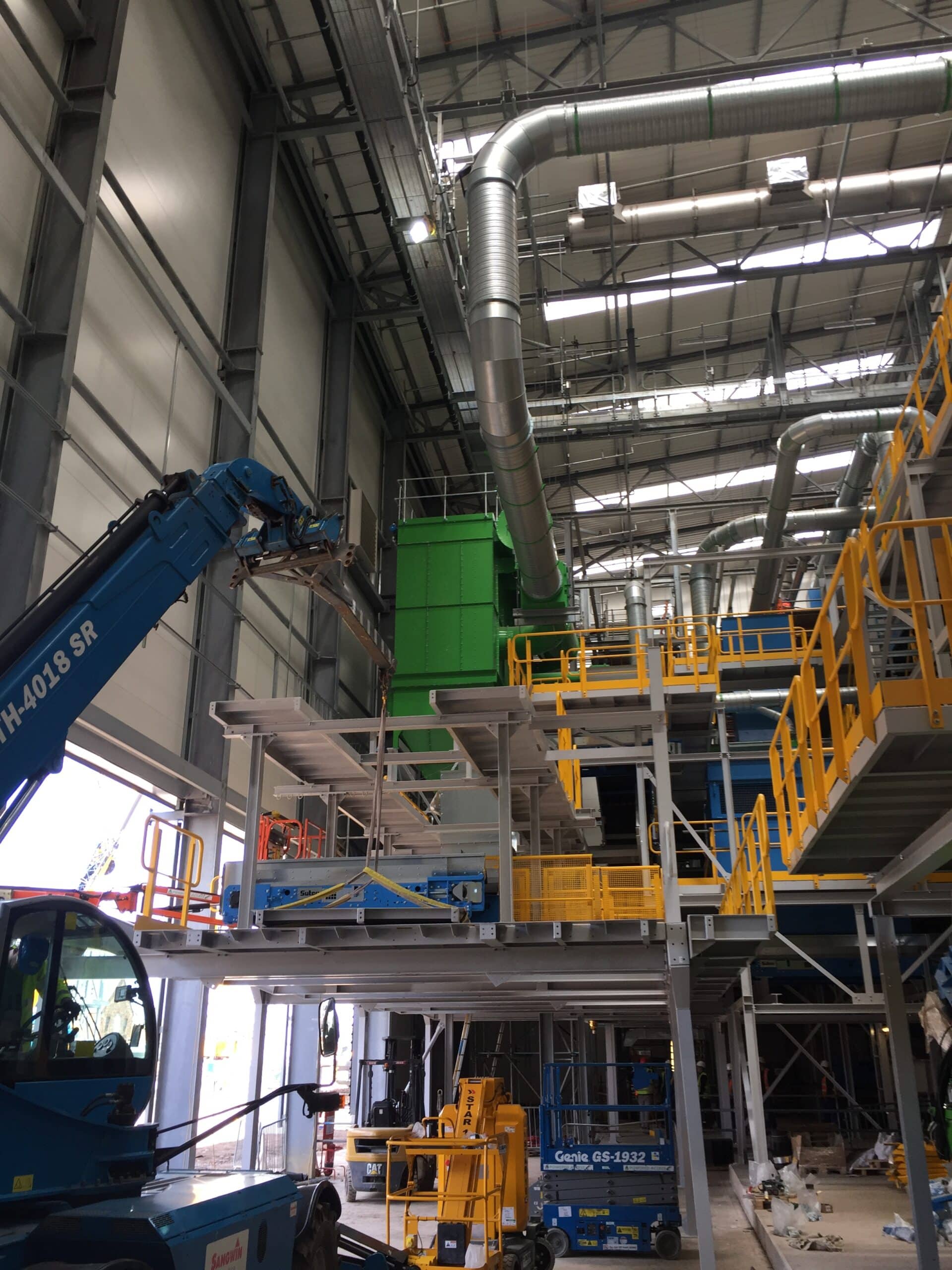

The three final dust extraction header ducts serving all the points will connect to the filter using an ATEX certified isolation damper. The dust filter will be approximately 500m2 and will be fully automatic tubular bag reverse jet filter and will be rated for approximately 72,000m3/h total air volume.

The filter unit will remove the dust particles from the airstream and discharge them via a trough hopper into a single Ø250mm screw conveyor and 400mm diameter rotary valve
for depositing into the dust briquetting system.

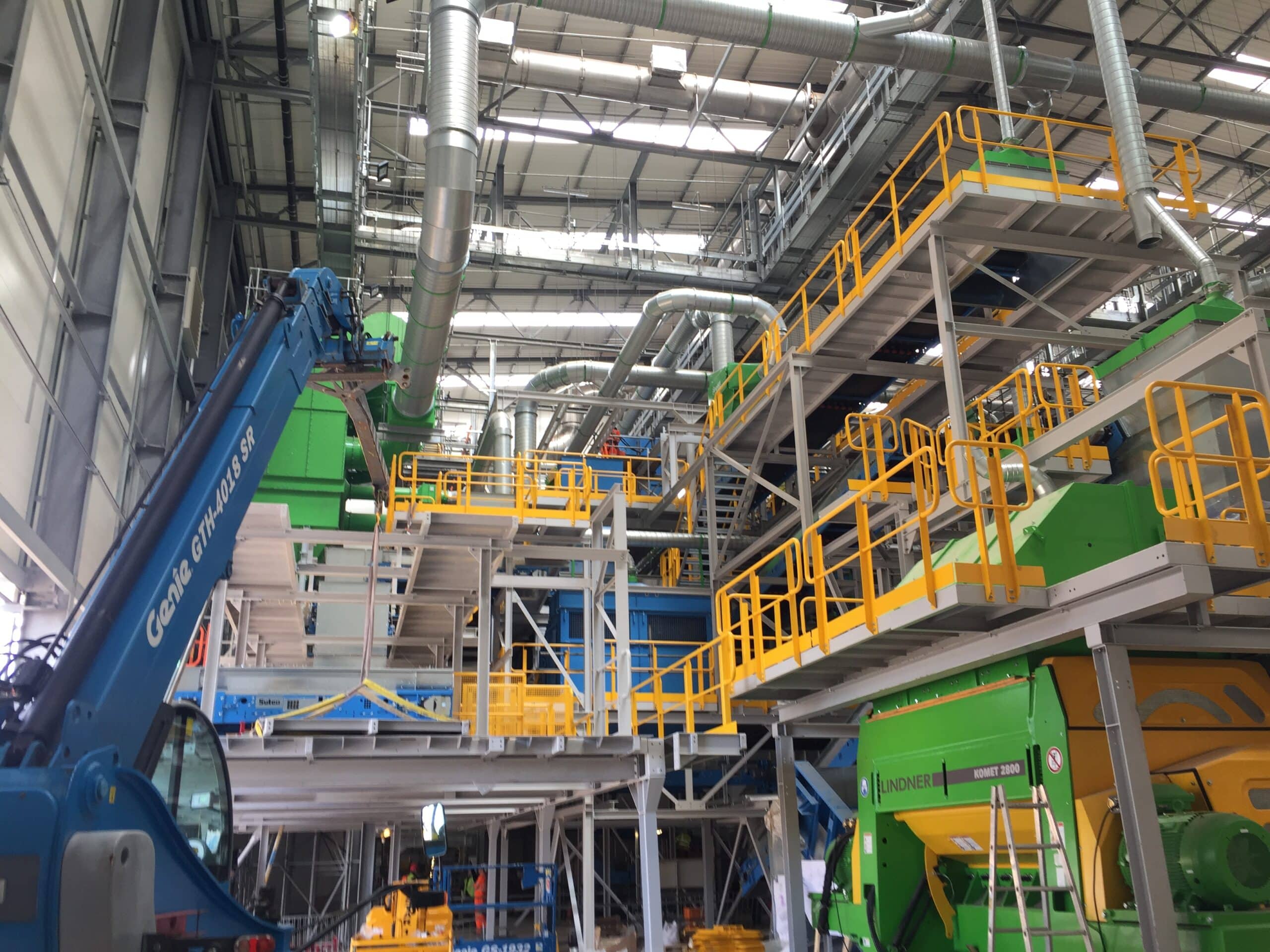

Dust control system at Energy from Waste Facility

The conveying air stream for the system will be created by a single high efficiency V belt drive clean air handling fan with spark minimising features and will be powered by an 110kW motor installed on the clean side of the dust filter.

A hydraulic dust briquetting press was selected to allow the loose dust collected by the filter to be compacted into a pellet and used as an additional fuel source.

The system also included a standalone spark detection and suppression system, which includes three zones (one for each duct) to provide further protection to the dust filter. The system consists of a separate zone duct mounted sensor, working in conjunction with a high pressure nozzle water curtain, installed approximately 6-10 meters away from the sensors.
