Air System Components

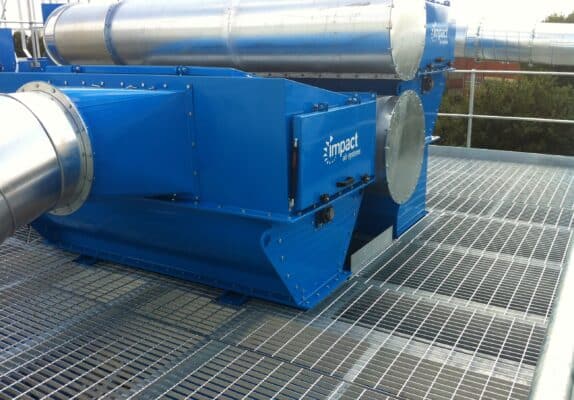

Angled Screen Separator and Rotary Valve
The separator’s main function is to separate the waste material from the conveying air stream. The separator assembly consists of a perforated screen plate, inclined downwards at an angle inside metal housing.

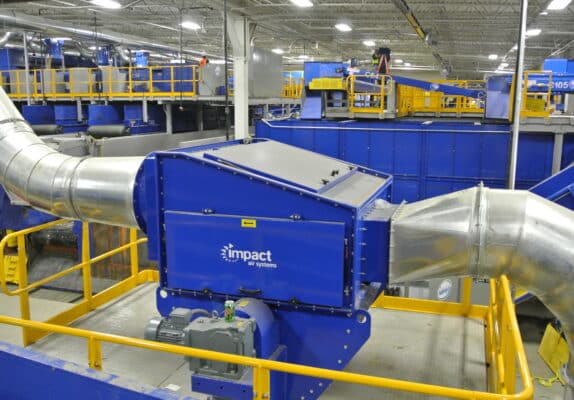

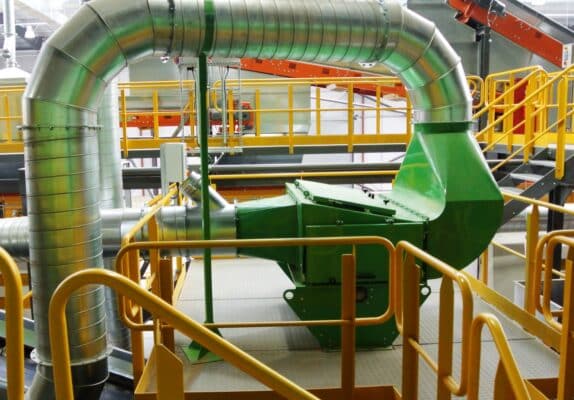

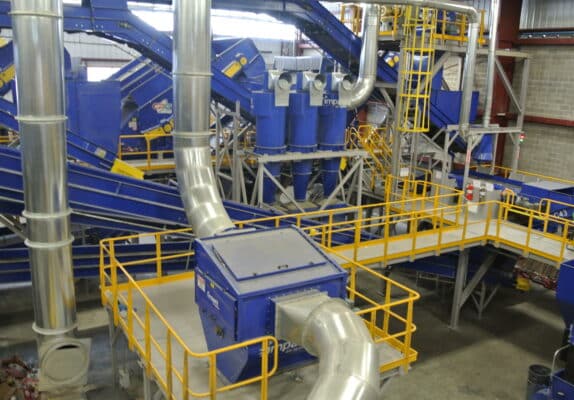

Rotary Separator
The rotary separator replaces much bulkier cyclone or static screen separators. The design consists of a large diameter rotary valve coupled with a specially engineered heavy duty perforated screen combined within a single enclosure.

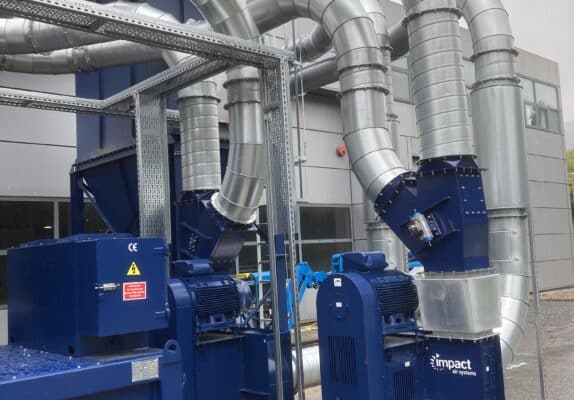

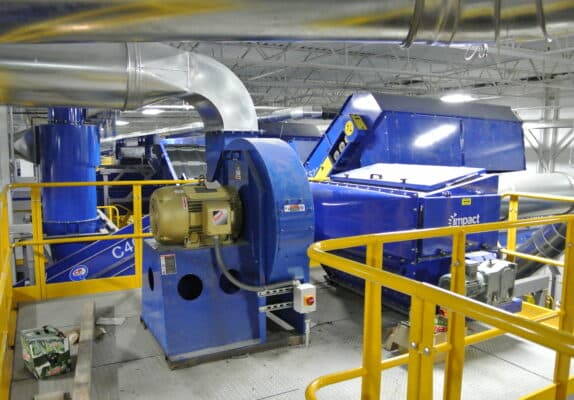

Material Handling Fan
Impact’s chopper fan is a purpose designed, heavy duty, material handling fan fitted with hardened steel cutting blades. Its function is to provide the required conveying air volume and pressure to efficiently transport the waste material through the system from the production machines to the material separator unit.

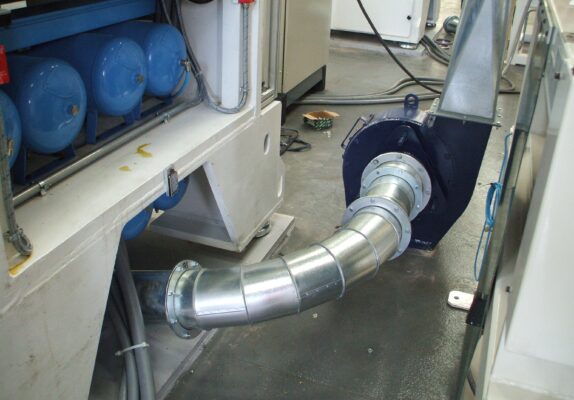

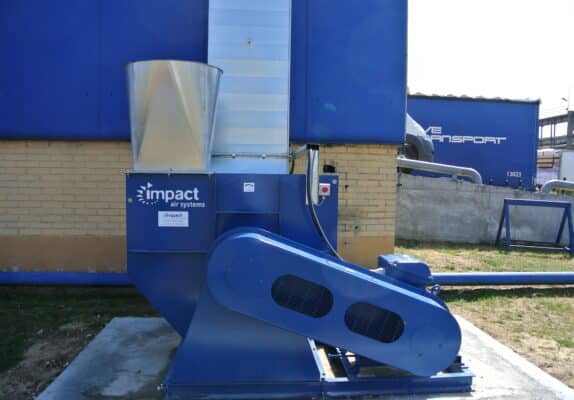

Centrifugal Fan
Backward bladed fans are the workhorse of industrial fans and can be used in a wide variety of applications. They can handle light dust loads, have a high peak efficiency and a non overloading power characteristic.

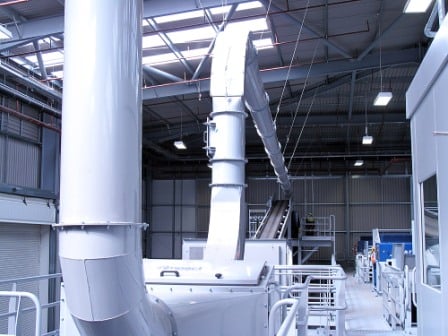

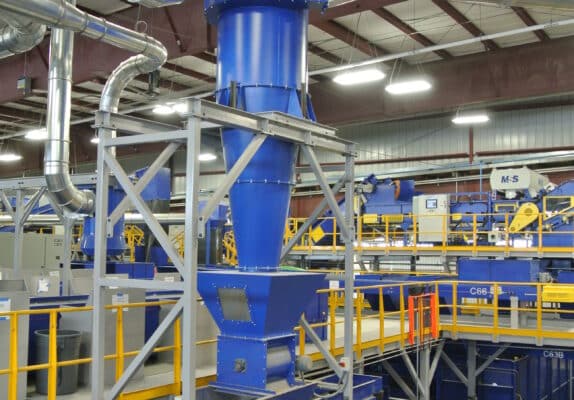

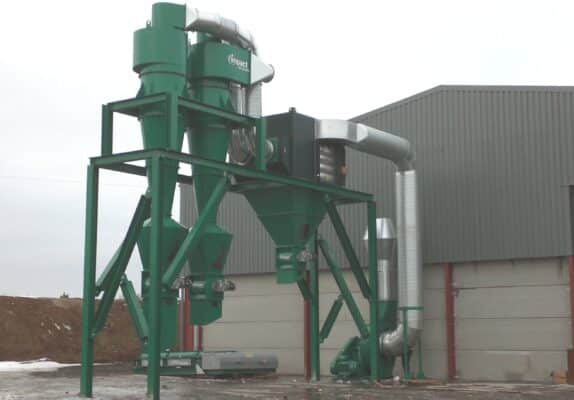

Cyclones
Impact offers a range of medium and high efficiency cyclones that are ideal for material pre-separation applications where small or fine material particles need to be removed from the conveying air stream prior to fine dust filtration.

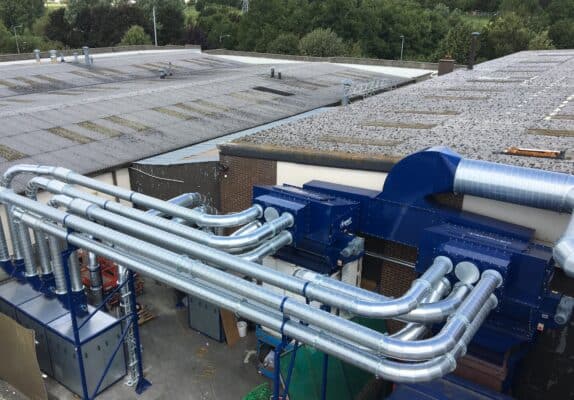

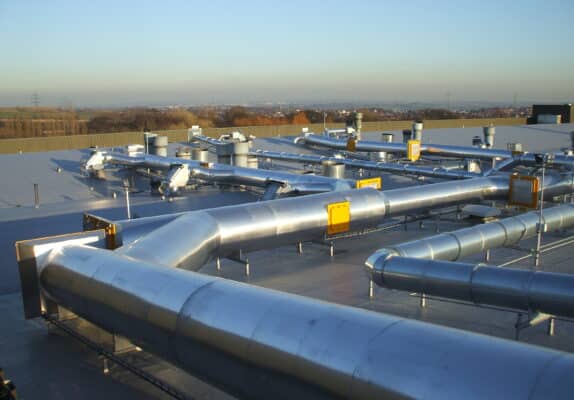

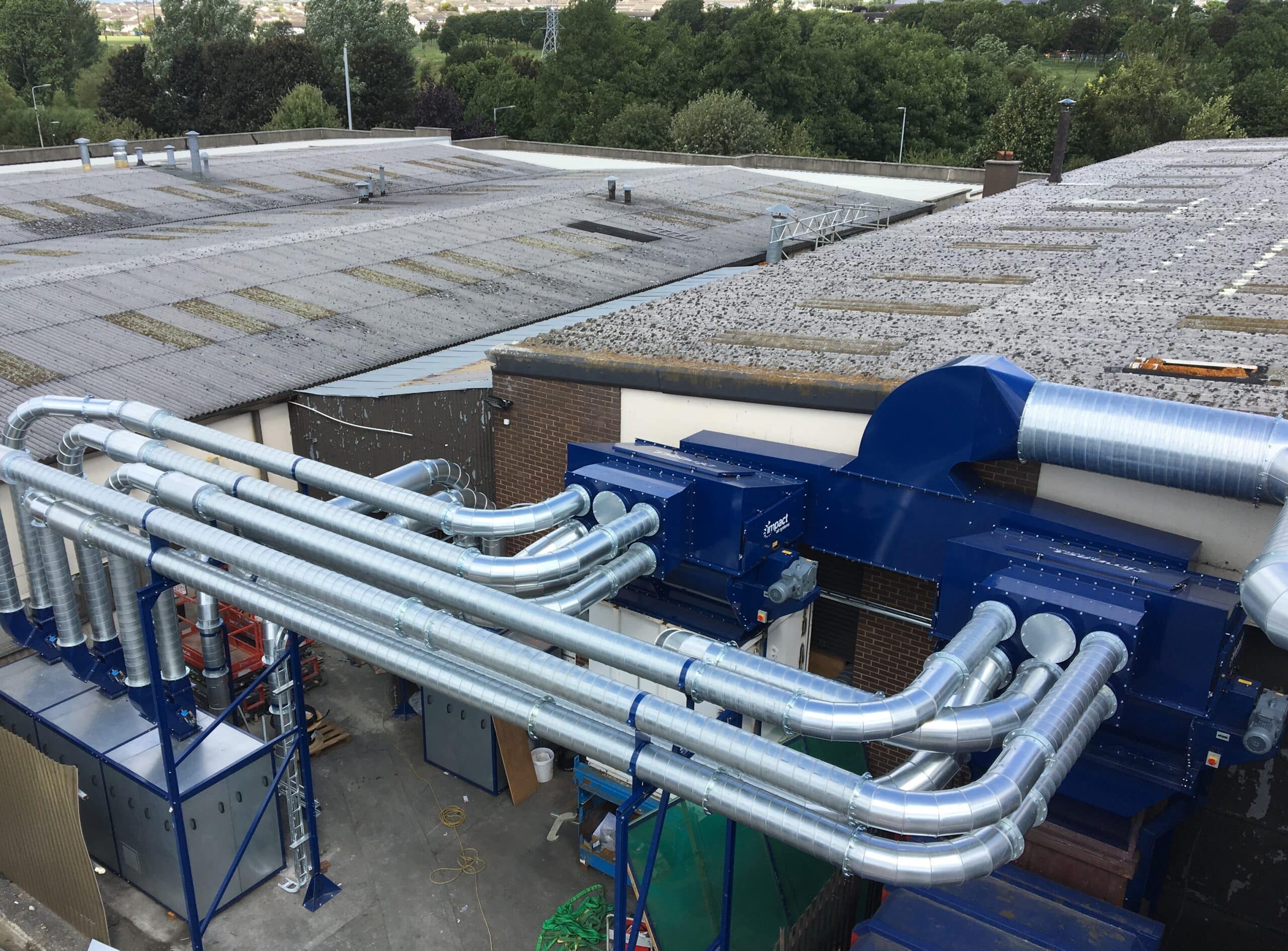

Ductwork Solutions
Impact offer a vast range of custom designed and fabricated machine pick up hoods, ductwork support equipment and transition sections, allowing our systems to meet your requirements.

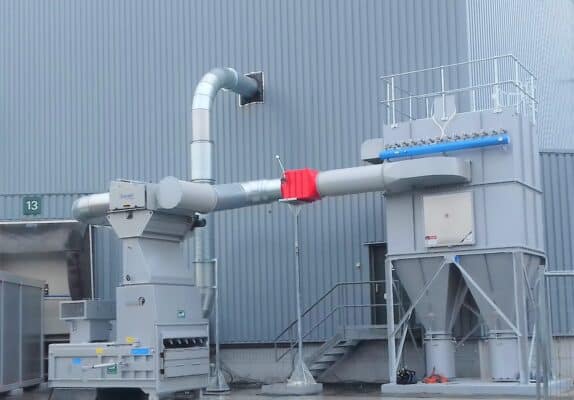

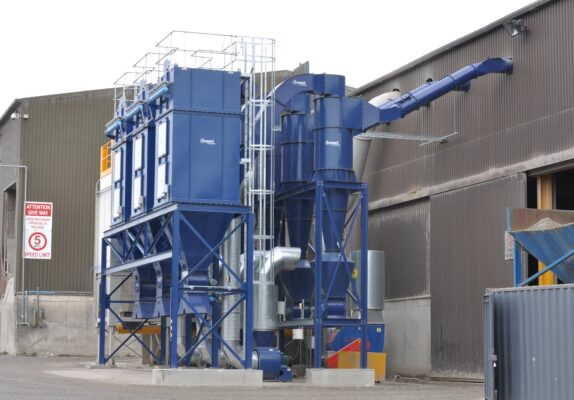

Reverse Jet Filter
The tubular bag reverse jet filter is designed to provide high quality filtration of the conveying air, providing continuous operation.

See PDF download for component technical data or contact our team for more information.
